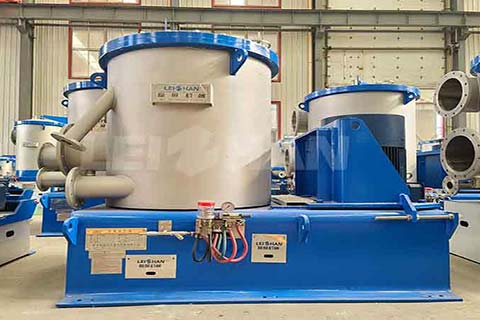

This paper pulping middle consistency pressure screen is suitable for waste paper pulping applications due to its high concentration tolerance, low energy consumption, and high production capacity. Pulp can be screened normally at concentrations ranging from 2.5% to 4%, effectively reducing water recirculation volume and system energy consumption during the production process. The internal rotor of this paper pulping middle consistency pressure screen features a multi-wing block design, which produces gentle pulses at a high frequency, ensuring clean pulp and preventing entanglement in actual production.
The working principle of this paper pulping middle consistency pressure screen involves feeding the pulp from the bottom, where the rotor generates vortices and turbulence to prevent screen basket clogging. The screened pulp is discharged from the center of the screen basket, while the pulp slurry and impurities are discharged from the top. Leizhan has further optimized the flow path of the pulp both inside and outside the screen basket, resulting in minimal pulp thickening, reduced risk of screen basket clogging and fiber damage, and a longer service life for the screen basket. This paper pulping middle consistency pressure screen also offers comprehensive advantages, including high screening concentration (≤4%), reduced water consumption and fiber loss, and a smaller screen basket area for the same production capacity, thereby lowering a paper mill’s operating costs and spare parts replacement expenses across multiple dimensions.
Leizhan possesses extensive industry experience and can provide customers with a complete set of paper making and pulp processing equipment. Please feel free to email me your requirements to receive more details and a quote. Email: flutingpapermachine@gmail.com
